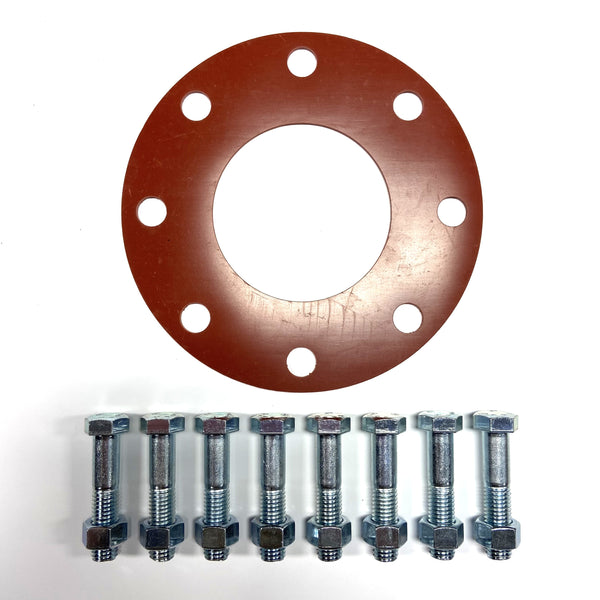

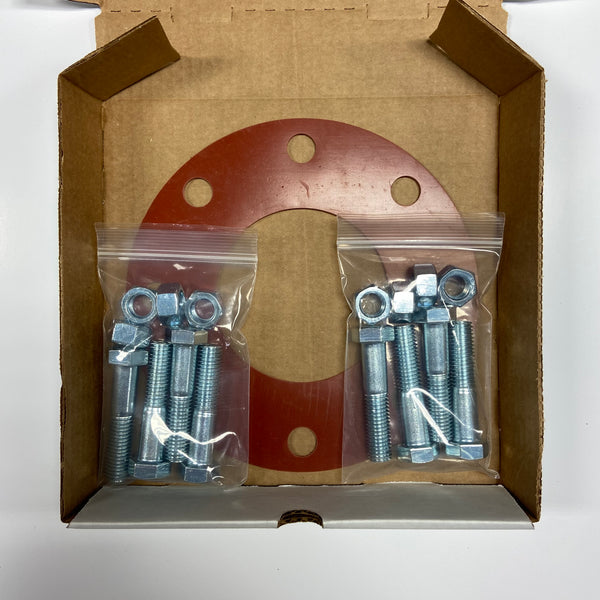

Flange Kit 4" Full Face 150# 1/16" Thick (SBR) Red Rubber Gasket & Bolt Pack

$22.56 $29.32

SKU: FK150FF4SBR.0625

Available Now!

Secure Payments

Bulk Packaging

Trusted Support

FLANGE KIT

NOMINAL PIPE SIZE: 4"

POUND CLASS: 150 LBS

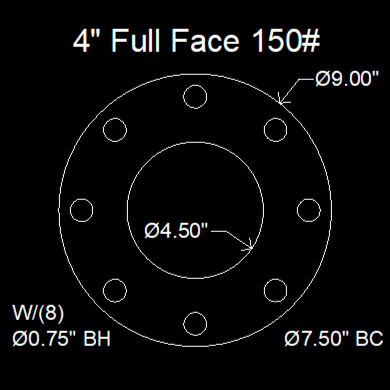

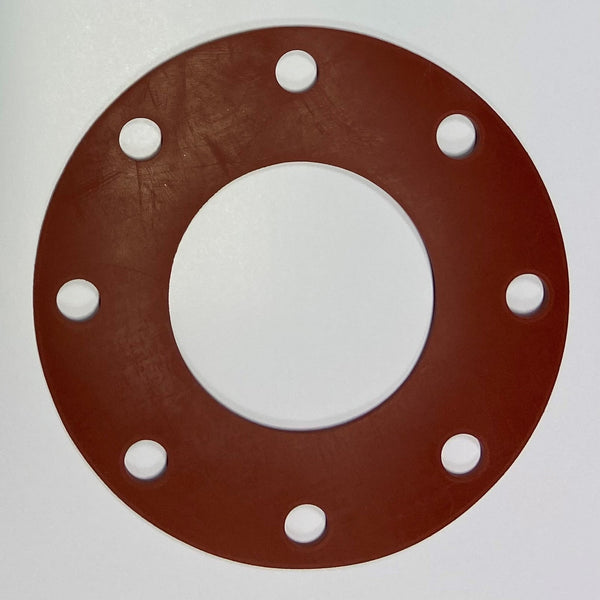

GASKET: ANSI 4” 150# FULL-FACE 1/16” THICK 75 DURO (SBR) RED RUBBER SMOOTH FINISH MEETS ASME B16.21 FOR 150# GASKETS, DIMENSIONS ASME B16.5 9" OD x 4-1/2" ID - (8) 3/4" BH ON 7-1/2" BC

BOLTS: (8) 5/8”-11 X 3” MATERIAL ASTM A307 GRADE A HEX BOLTS ZINC PLATED CARBON STEEL, DIMENSIONS ASME B18.2.1, THREAD CLASS 2A MINIMUM TENSILE STRENGTH 60 KSI

NUTS: (8) 5/8”-11 MATERIAL ASTM A563 GRADE 2 FINISHED HEX NUT ZINC PLATED CARBON STEEL DIMENSIONS ASME B18.2.2 THREAD CLASS 2B
