Flange Kit 8" Full Face 150# 1/8" Thick (SBR) Red Rubber Gasket & Bolt Pack

$39.98 $53.27

SKU: FK150FF8SBR.125

Available Now!

Secure Payments

Bulk Packaging

Trusted Support

FLANGE KIT

NOMINAL PIPE SIZE: 8"

POUND CLASS: 150 LBS

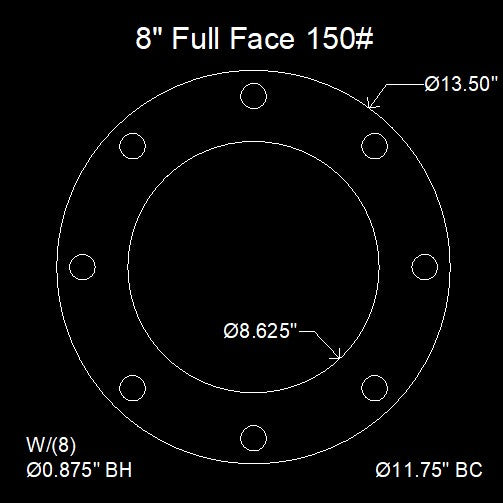

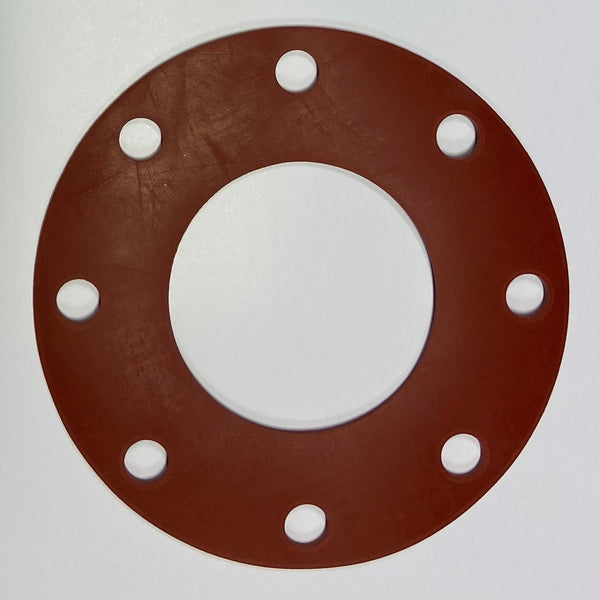

GASKET: ANSI 8” 150# FULL-FACE 1/8” THICK 75 DURO (SBR) RED RUBBER SMOOTH FINISH MEETS ASME B16.21 FOR 150# GASKETS, DIMENSIONS ASME B16.5 13-1/2" OD x 8-5/8" ID - (8) 7/8" BH ON 11-3/4" BC

BOLTS: (8) 3/4”-10 X 3-1/2” MATERIAL ASTM A307 GRADE A HEX BOLTS ZINC PLATED CARBON STEEL, DIMENSIONS ASME B18.2.1, THREAD CLASS 2A MINIMUM TENSILE STRENGTH 60 KSI

NUTS: (8) 3/4”-10 MATERIAL ASTM A563 GRADE 2 FINISHED HEX NUT ZINC PLATED CARBON STEEL DIMENSIONS ASME B18.2.2 THREAD CLASS 2B
